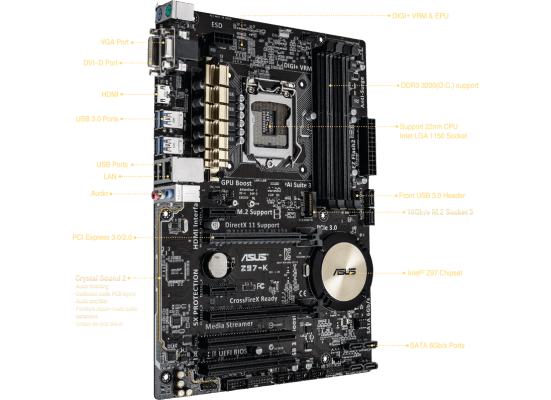

Mainboard ASUS Z97-K M2

1.690.000,0

Hãng sản xuất ASUS
Chủng loại ASUS Z97-K
CPU hỗ trợ Intel ® Socket 1150
Supports Intel ® 22 nm CPU
Supports Intel ® Turbo Boost Technology 2.0
Chipset Intel ® Z97
Mô tả
Hãng sản xuất ASUS
Chủng loại ASUS Z97-K
CPU hỗ trợ Intel® Socket 1150 Generation Core™ i7/Core™ i5 /Core™ i3/Pentium ®/Celeron ® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
Chipset Intel ® Z97
Bộ nhớ trong Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
VGA Integrated Graphics Processor- Intel ® HD Graphics support
Multi-VGA output support : HDMI/DVI-D/RGB ports
– Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
– Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
– Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 512 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 3 displays simultaneously
Âm thanh ROG SupremeFX 2015 8-Channel High Definition Audio CODEC
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
– SupremeFX Shielding Technology
– ESS ® ES9023P DAC: dB SNR, dB THD+N (Max. kHz/ -bit)
– TI RC4580 2VRMS audio OP AMP(s)
Audio Feature :
– Gold-plated jacks
– DTS Connect
– Optical S/PDIF out port(s) at back panel
– Sonic SenseAmp
– Sonic Studio II
– Sonic Radar II
Mạng
Realtek ® 8111GR, 1 x Gigabit LAN Controller(s), featuring Turbo LAN
Khe mở rộng
1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
1 x PCIe 2.0 x16 (max at x4 mode, black) *1
2 x PCIe 2.0 x1
2 x PCI
Chuẩn lưu trữ
Intel® Z97 chipset :
1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Cổng giao tiếp trước và sau 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
2 x USB 2.0
3 x Audio jack(s)
Kích thước ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
